Flexible NSN Boot Fiber Patch Cord DLC DLC OM2 CPRI Cable NSN Boot End Patch Cord FTTA RRU BBU

Model Number : TW-PC-NSN-OM2

Cable Structure : outdoor fiber armored cable

MOQ : 10

Operating Temperature : -40°C to +85°C

Jacket Color : Black

Cable Diameter : 5.0mm 7.0mm

Certification : CE ROSH

Fiber Count : 2 Cores

Delivery Time : 5-8 working days

Length : 1m or 1.5m

Fiber Diameter : 9/125um (Singlemode) or 50/125um, 62.5/125um (Multimode)

Brand Name : FOCONNEC

Optical Fiber : OM1 (MM 50/125), OM2 (MM 62.5/125

Place of Origin : China

Payment Terms : T/T, Western Union

Fiber Type : G.652D, G.657A1, G.657A2, or G.657B3

Packaging Details : PE Bag

Jacket : LSZH, TPU

Contact Now

Flexible NSN Boot Fiber Patch Cord DLC DLC SM OM2 CPRI Cable NSN Boot End Patch Cord FTTA RRU BBU

NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDM

A/TD-SCDMA/WIMAX/GSM) tailored products that can be meet the FTTA(fiber to the anten

na) program requirements for outdoor environment conditions and adverse weather conditio

ns.They are well suited for Industrial and Aerospace and Defense applications.

l Features:

Standard DLC connector

Available Single mode and Multimode

IP67 protection, salt-mist proof, humidity proof

Aluminum housing, compact design

Broad temperature range and wide range of indoor and outdoor Patch cables

Easy Operation, reliable and cost-effective Installation

The connector of side A is DLC, and side-B can be LC,FC,SC

Used for 4G 5G base station BBU, RRU, RRH, LTE

l Performance:

Item	Data
Insertion Loss	≤0.3dB
Return Loss	SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life	500cycles
Working temperature	-20°C~+70°C
Storage temperature	-20°C~+70°C
Protection Level	IP67
Tensile Data	Tensile between junction and fiber cable≥100N

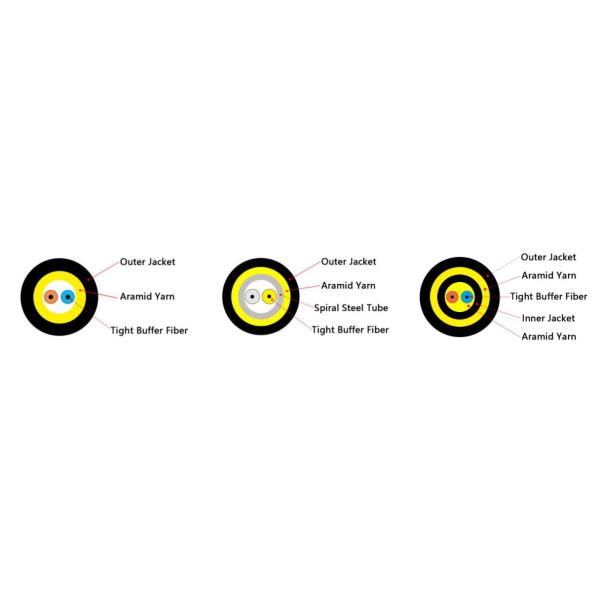

l Cable Structure:

Flexible NSN Boot Fiber Patch Cord DLC DLC OM2 CPRI Cable NSN Boot End Patch Cord FTTA RRU BBU

l Type1: 2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=5.0mm

Cable Count	OD (mm)	Weight	Tensile strength		General attenuation		Minimal Bending radius	Storage temperature
			Short term	Long term	Singlemode	Multimode
2	5.0±0.2	25kg	700N	350N	1310nm ≤0.4dB/km	850nm ≤3.0dB/km	20D	-20℃～+70℃
					1550nm ≤0.3dB/km	1300nm ≤1.0dB/km

Photo	Part Number	Description	Length
	Compatible Nokia FUFAN 473283A	DLC/OD-DLC/OD-SM-5.0-2m	2
	Compatible Nokia FUFAJ 473279A	DLC/OD-DLC/OD-SM-5.0-5m	5
	Compatible Nokia FUFBG 473309A	DLC/OD-DLC/OD-SM-5.0-10m	10
	Compatible Nokia FUFBE 473307A	DLC/OD-DLC/OD-SM-5.0-30m	30
	Compatible Nokia FUFBF 473308A	DLC/OD-DLC/OD-SM-5.0-50m	50
	Compatible Nokia FUTEY 473537A	DLC/OD-DLC/OD-SM-5.0-80m	80
	Compatible Nokia FUFBH 473310A	DLC/OD-DLC/OD-SM-5.0-100m	100
	Compatible Nokia FUTEX 473536A	DLC/OD-DLC/OD-SM-5.0-150m	150
	Compatible Nokia FUFBI 473311A	DLC/OD-DLC/OD-SM-5.0-200m	200
